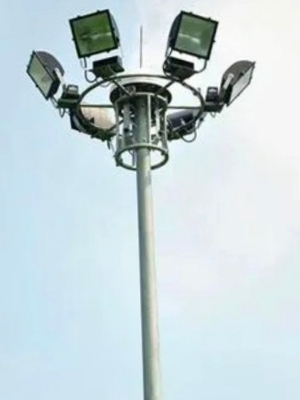

Polygonal High Mast Pole

Name: Polygonal High Mast Pole
Brand: C.K.S INFRA STRUCTURE PRIVATE LIMITED
Price: 45000 INR
Availability: InStock

Price 45000 INR/ Pole

Get a Price/Quote

MOQ : 100 Poles

Polygonal High Mast Pole Specification

Features
Easy installation, weather resistance, corrosion resistance, low maintenance

Surface Finish
Hot dip galvanized; powder coated optional

Usage & Applications
Stadiums, parking lots, highways, airports, public areas

Mounting Type
Base plate mounted / anchor bolt mounting

Weight
Dependent on height and configuration (typically 400-1800kg)

Thickness
3mm to 12mm (as per design requirements)

Pole Type
Polygonal High Mast Pole

Product Type
Outdoor Lighting Pole

Material
High quality galvanized steel

Rated Power
Standard 250W to 2000W (customizable per requirement)

Length
Available in various lengths (10m to 40m)

Voltage
220V - 415V

Lighting
Fitted with LED or Sodium Vapor Luminaires (as per requirement)

Input Voltage
110V/220V/400V (as per luminaire type)

Working Temperature
-30C to +50C

Rated Current
10A - 32A (per luminaire)

Socket
Standard industrial waterproof socket

Color
Silver, grey, or customized

Height
12m, 16m, 20m, 25m, 30m, 35m, or as required

Top Diameter
150mm to 300mm

Service Life
>25 years (with recommended maintenance)

Number of Luminaire Arms
6-12 (customizable)

Protection Grade
IP65 (Luminaires and electrical components)

Pole Shape
Multi-sided polygonal

Wind Resistance
Designed as per IS 875, up to 180km/h

Bottom Diameter
300mm to 550mm

Anti-theft Features
Lockable access door

Raising/Lowering System
Manual or Motorized Winch-based raising/lowering mechanism

Foundation Type
Cast-in-situ RCC pedestal with anchor bolts

Polygonal High Mast Pole Trade Information

Minimum Order Quantity
100 Poles

Supply Ability
1000 Poles Per Week

Delivery Time
10 Days

Main Domestic Market
All India

Polygonal High Mast Pole About

Unveil splendiferous brilliance with our Polygonal High Mast Pole-now at a limited time, reduced price! First-class in design and dazzling in performance, these poles are hotly in demand for maximizing safety and visibility in stadiums, airports, highways, and public spaces. Crafted from high-quality galvanized steel, available in various heights, and customizable for luminaire arms and lighting, these poles withstand winds up to 180km/h. Enhanced with advanced anti-theft features and IP65 protection, each pole guarantees a service life beyond 25 years!

Applications and Use of Polygonal High Mast Poles

Our Polygonal High Mast Poles are expertly designed for a range of environments, including stadiums, highways, parking areas, airports, and large public spaces. With customizable luminaire arms and heights, these poles deliver superior lighting and coverage wherever they are installed. Thanks to their weather and corrosion resistance, users can confidently deploy them outdoors. To utilize, simply mount on the cast-in-situ RCC pedestal, connect to the appropriate voltage, and power up the dazzling illumination.

Supply, Packing & Delivery of Polygonal High Mast Poles

We ensure secure packing & dispatch to prevent damage during transit. Our supply chain is streamlined for timely deliveries, and we offer exchange options for select scenarios. Samples can be supplied per our sample policy upon request. FOB Port options are available as per contractual terms, catering to both domestic and international clients. With efficient logistics, clients receive their orders promptly and in perfect condition, ready for immediate installation, reinforcing our reputation as a reliable manufacturer and supplier.

FAQ's of Polygonal High Mast Pole:

Q: How is the Polygonal High Mast Pole installed at application sites?

A: Installation involves mounting the pole on a cast-in-situ RCC pedestal with anchor bolts, connecting the luminaires to the standard industrial waterproof socket, and configuring the electrical input as per requirement.

Q: What are the main benefits of choosing your Polygonal High Mast Poles?

A: Our poles offer robust wind resistance, weather and corrosion protection, easy installation, customizable design, and a service life exceeding 25 years, making them ideal for demanding outdoor applications.

Q: When can I expect delivery after placing an order for the Polygonal High Mast Pole?

A: Delivery timelines depend on the order size and customization but are typically finalized during order confirmation. Our packing and dispatch team ensures prompt shipment through a reliable supply network.

Q: Where can the Polygonal High Mast Pole be effectively used?

A: These poles are suited for stadiums, highways, airports, parking lots, and expansive public areas requiring high-performance, long-lasting lighting solutions.

Q: What process do you follow for customization and supply of poles?

A: Once your requirements are received, we tailor the pole's height, luminaire arms, and lighting to match. Quality checks are followed by secure packing and supply, with shipment arranged via appointed FOB ports.
